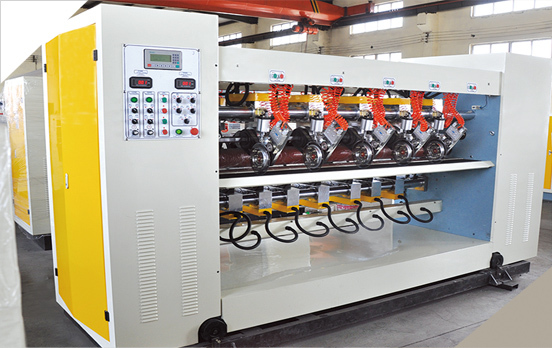

BFY-QDP Type Thin Blade Slitter Scorer Electric Adjust Scoring Distance Type
BFY-QDP Type Thin Blade Slitter Scorer Electric Adjust Scoring Distance Type
share
  • Detail
  • Parameters


Character:

◎Slitting Part:adopt electric adjust blade distance,pneumatic lock,adopt high quality tungsten steel blade,sharp and long work-life,slice more tidy,non-press and non- burr.

◎Scoring Part:adopt electric adjust scoring rolls distance,pneumatic lock,adopt 5 points  coring,scoring distance in-phase adjust,blazonry and easy to bend the carton sheet.

◎The above and the below rolls of scoring in-phase adjust,the under can minor adjustment alone.

◎Pneumatic make blades and scoring rising.

◎Sharpening device adopts automatic and manual two kinds of pneumatic sharpening way, the side whet knife edge work, improve the work effi ciency.

◎Electric correction, the operation is simple and practical. Suitable for different production line needs.

◎The famous brand frequency conversion motor inverter, and production line synchronous precision is high.

Model

1800

2300

Max  slitting width (mm)

1800

2300

Min  slitting width (mm)

140

140

Min  scoring width (mm)

140

140

Scoring  height (mm)

0-12

0-12

Blade  (mm)

φ200×122×1.2

Power  (KW)

7.9

Machine  dimension (mm)

3300X1200X2000

3700X1200X2000
