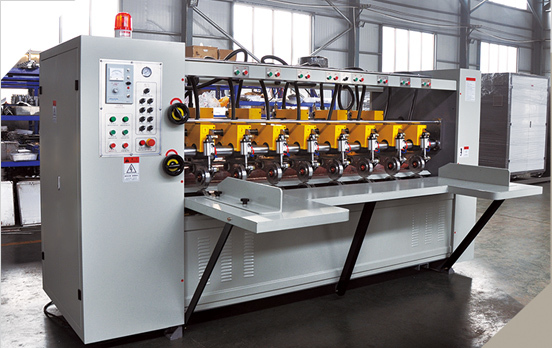

BFY-QDT Type Thin Blade Slitter Scorer Electric Adjust Scoring & blade Distance Type

BFY-QDT Type Thin Blade Slitter Scorer Electric Adjust Scoring & blade Distance Type

share
  • Detail
  • Parameters


Character:

◎ Electric adjustment of blade and scorer distance, The two part scoring synchronous adjustment,the

down-pressing can be fi ne-tuning single, pneumatic and automatic lock fastening.

◎ Pneumatic lift knife, pneumatic lift scorer.

◎ The labor intensity of the workers is much lower, more high effi ciency

◎ The knife’s material is Tungsten alloy blade, blade sharp, long service life, smooth incision, smooth,no cardboard cracked,no collapse.

◎ The sharpening system with automatic and manual two ways, Grinding and cutting at the same time ,

improve work effi ciency.

◎ Electrical appliances adopts domestic brands and imported products, reliable performance .


Model

2300

2500

Max slitting width (mm)

2000

2200

Min slitting width (mm)

140

140

Min scoring width (mm)

140

140

Scoring height (mm)

0-12

0-12

Blade (mm)

φ200×122×1.2

     Power (KW)

7.9

Machine dimension (mm)

3600X1200X2000

3700X1200X2000
